Connector Pipe Screen: An Effective Trash Capture Filter Device

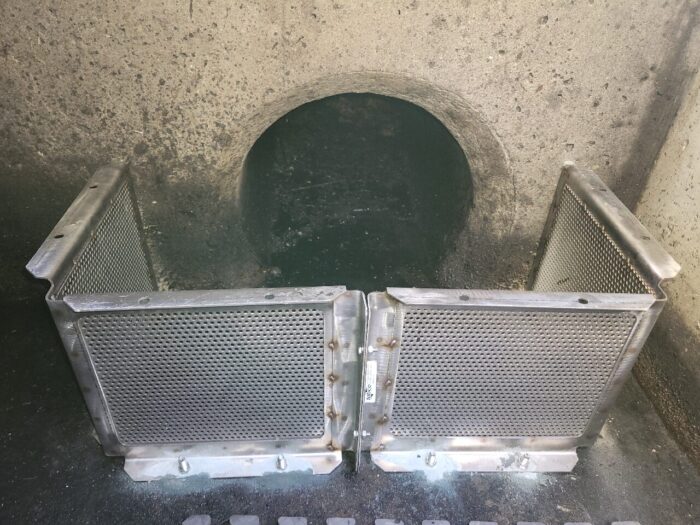

Fabco’s Connector Pipe Screen (CPS) is a full-capture device that traps trash and debris inside catch basins, allowing only filtered stormwater to exit. Designed to fit through a standard 22″ manhole, it’s easy to install in new or existing systems. The CPS matches the flow rate of the connected pipe, preventing backups and flooding. With a California Water Board-certified option available, it’s a reliable, compliant solution for efficient stormwater pretreatment in municipal and commercial applications.

Discover the Ultimate in Stormwater Pretreatment with Jen-Hill

Protect your stormwater system from clogging and contamination with Jen-Hill Construction’s proven pretreatment solutions. Our comprehensive lineup is designed to capture sediment, debris, and pollutants at the source—extending the life and performance of your detention, infiltration, and water quality systems.

Would you like to learn more about this product?

Contact Us

Additional Resources

Additional Information

Specifications

  • Available for outlet pipes up to 36″
  • Perforated screen with 51% open area and 3/16″ holes
  • Screen open area ≥ Outlet pipe area
  • Bypass feature prevents flooding if screen is blinded
  • Bypass area ≥ Outlet pipe area
  • Collapses for entry via curb inlet or ⌀22″ manhole opening

Features

  • Available in aluminum or stainless steel for durability and corrosion resistance
  • Customizable shape and size for abnormal catch basins
  • Minimalistic design, allowing you to add only the features you need
  • Optional bottom cover for elevated pipes
  • Optional top cover for pipes below a curb or grated inlet
  • SWRCB certified top cover option available
